Exam 5: Applying Newtons Laws

Show Answer

Share

---

All types

Filters

Study FlashcardsPractice ExamLearn

Question 21

Multiple Choice

Review LaterAdd Note

Review Later

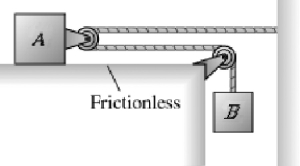

A wooden block A of mass 4.0 kg slides on a frictionless table when pulled using a massless string and pulley array by a hanging box B of mass 5.0 kg, as shown in the figure. What is the acceleration of block A as it slides on the frictionless table? Hint: Think carefully about the acceleration constraint.

A) 4.1 m/s²
B) 3.5 m/s²
C) 3.1 m/s²
D) 2.7 m/s²

Correct Answer

verified

Show Answer

Question 22

Multiple Choice

Review LaterAdd Note

Review Later

A person is dragging a packing crate of mass 100 kg across a rough horizontal floor where the coefficient of kinetic friction is 0.400. He exerts a force F sufficient to accelerate the crate forward. At what angle above horizontal should his pulling force be directed in order to achieve the maximum acceleration?

A) 21.8°
B) 27.7°
C) 30°
D) 34.5°
E) 45°

Correct Answer

verified

Show Answer

Question 23

Multiple Choice

Review LaterAdd Note

A ball of mass 5.0 kg is suspended by two wires from a horizontal arm that is attached to a vertical shaft, as shown in the figure. The shaft is in uniform rotation about its axis. The rate of rotation is adjusted until the tensions in the two wires are EQUAL. At that speed, the radial acceleration of the ball is closest to

Two blocks are connected by a string that goes over an ideal pulley as shown in the figure and pulls on block A parallel to the surface of the plane. Block A has a mass of 3.00 kg and can slide along a rough plane inclined 30.0° to the horizontal. The coefficient of static friction between block A and the plane is 0.400. What mass should block B have in order to start block A sliding up the plane?

A string is attached to the rear-view mirror of a car. A ball is hanging at the other end of the string. The car is driving around in a circle, at a constant speed. Which of the following lists gives all of the forces directly acting on the ball?

Two boxes are connected by a weightless cord running over a very light frictionless pulley as shown in the figure. Box A, of mass 8.0 kg, is initially at rest on the top of the table. The coefficient of kinetic friction between box A and the table is 0.10. Box B has a mass of 15.0 kg, and the system begins to move just after it is released. (a) Draw the free-body diagrams for each of the boxes, identifying all of the forces acting on each one. (b) Calculate the acceleration of each box. (c) What is the tension in the cord?

A 6.0 kg box slides down an inclined plane that makes an angle of 39° with the horizontal. If the coefficient of kinetic friction is 0.19, at what rate does the box accelerate down the slope?

A 50.0-kg box rests on a horizontal surface. The coefficient of static friction between the box and the surface is 0.300 and the coefficient of kinetic friction is 0.200. What is the friction force on the box if (a) a horizontal 140-N push is applied to it? (b) a horizontal 175-N push is applied to it?

A Ferris wheel has diameter of 10 m and makes one revolution in 8.0 seconds. A person weighing 670 N is sitting on one of the benches attached at the rim of the wheel. What is the apparent weight (that is, the normal force exerted on her by the bench) of the person as she passes through the highest point of her motion?

In a shuffleboard game, the puck slides a total of 12 m before coming to rest. If the coefficient of kinetic friction between the puck and the horizontal board is 0.28, what was the initial speed of the puck?

Two bodies P and Q on a smooth horizontal surface are connected by a light cord. The mass of P is greater than that of Q. A horizontal force (of magnitude F) is applied to Q as shown in the figure, accelerating the bodies to the right. The magnitude of the force exerted by the connecting cord on body P will be

The figure shows two forces acting at right angles on an object. They have magnitudes F₁ = 6.3 N and F₂ = 2.1 N. What third force will cause the object to be in equilibrium (acceleration equals zero) ?

Three boxes in contact rest side-by-side on a smooth, horizontal floor. Their masses are 5.0-kg, 3.0-kg, and 2.0-kg, with the 3.0-kg box in the center. A force of 50 N pushes on the 5.0-kg box, which pushes against the other two boxes. (a) Draw the free-body diagrams for each of the boxes. (b) What magnitude force does the 3.0-kg box exert on the 5.0-kg box? (c) What magnitude force does the 3.0-kg box exert on the 2.0-kg box?

A 30.0-kg object experiences a drag force due to air resistance with a magnitude proportional to the square of its speed. The object falls with an acceleration of 4.00 m/s2 downward when it is falling downward at 70.0 m/s. What is its terminal speed?

A box is sliding down an incline tilted at a 12.0° angle above horizontal. The box is initially sliding down the incline at a speed of 1.50 m/s. The coefficient of kinetic friction between the box and the incline is 0.340. How far does the box slide down the incline before coming to rest?

Two weights are connected by a massless wire and pulled upward with a constant speed of 1.50 m/s by a vertical pull P. The tension in the wire is T (see figure) . P is closest to

A roadway for stunt drivers is designed for racecars moving at a speed of 40 m/s. A curved section of the roadway is a circular arc of 230 m radius. The roadway is banked so that a vehicle can go around the curve with the friction force from the road equal to zero. At what angle is the roadway banked?

If you swing a bucket of water fast enough in a vertical circle, at the highest point the water does not spill out because an outward force balances the pull of gravity on the water.

A 60.0-kg person rides in an elevator while standing on a scale. The scale reads 400 N. The acceleration of the elevator is closest to

A 60.0-kg person rides in elevator while standing on a scale. The elevator is traveling downward but slowing down at a rate of 2.00 m/s². The reading on the scale is closest to
